Mobile Computer

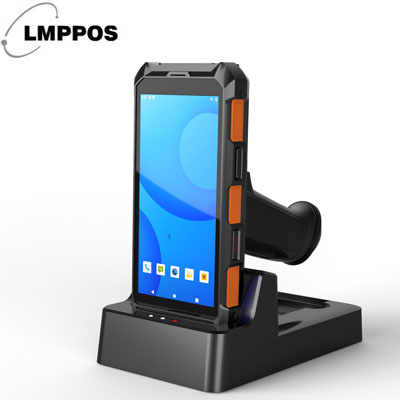

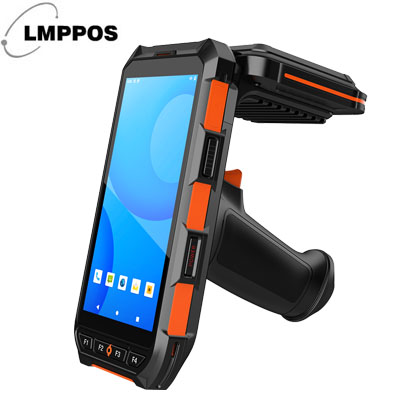

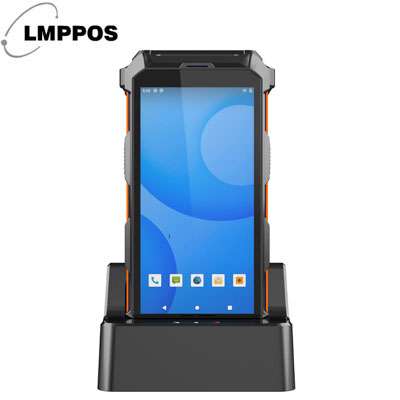

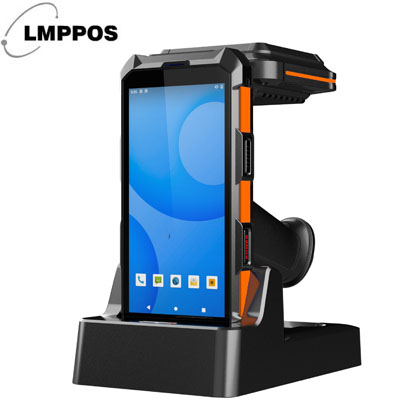

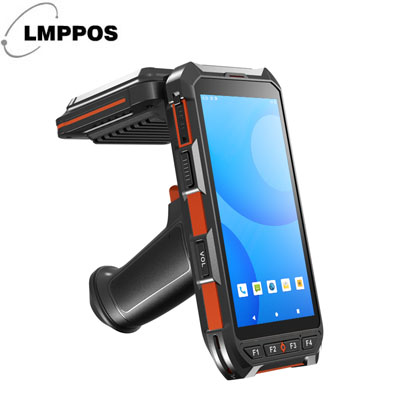

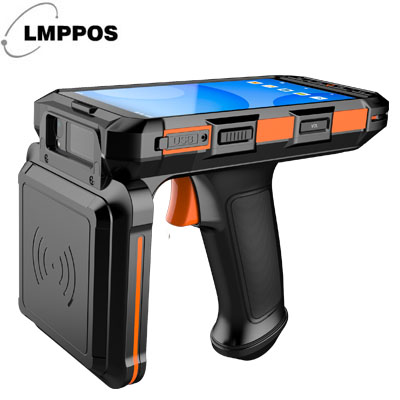

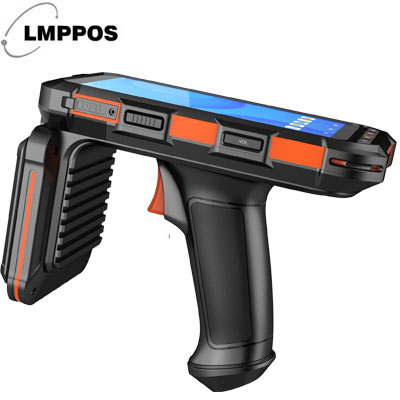

LMPC6100 Android Mobile Computer

Model:LMPC6100
Android OS:13.0
Sealing:IP65
Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight
Product description: handheld computer,android computer,android pc,handheld data terminal,PDA,mobile computer,handheld barcode terminal,Android Mobile Computer
INQUIRY

Industrial and Humanized Hardware Design

Industrial&humanized keypad design and tough 5.5 inch touch screen together with high resolution of 720*1440 display shall match high standards in logistics, express and retail.

Octa-Core Processor&Large Memory

Android 13.0 OS with memory of 4GB RAM/64GB ROM shall provide the highly standard experience

Superior Data Communication and Security Guarantee

Double insurance of 4G &WIFI network and highly secured Android 10.0 system shall provide the high speed data communication and perfect security guarantee;

SPECIFICATIONS
PHYSICAL CHARACTERISTICS

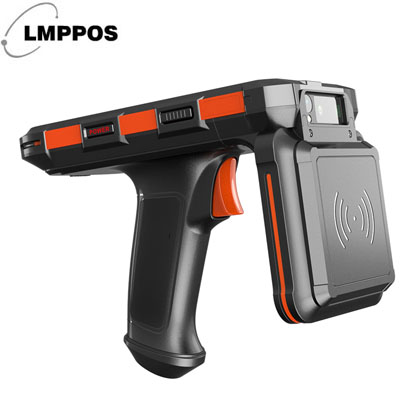

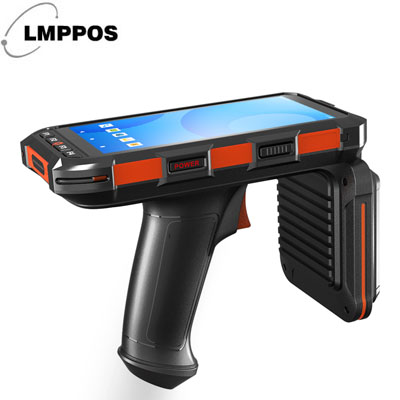

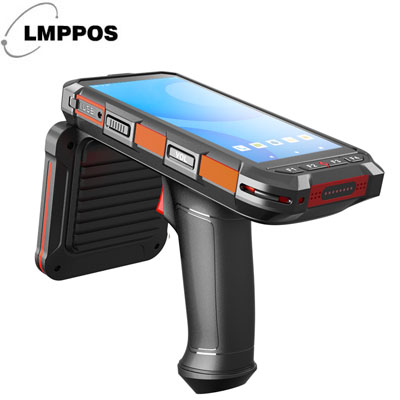

Dimension	171mm(H)x81mm(W)x20.4mm(D)±2 mm(without the pistol grip and UHF shield)
Weight	Net Weight :600g (including battery&wrist strap)
Display	Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight
Backlight	LED backlight
Expansions	2PSAM, 2 SIM, 1 TF
Battery	Rechargeable li-ion polymer, 3.8V, 7200mAh

PERFORMANCE CHARACTERSTICS

CPU	Quad A73 2.0GHz octa-core
Operating System	Android 13.0
Storage	4GB RAM,64GB ROM,MicroSD(max 256GB expansion)

USER ENVIRONMENT

Operating Temp.	-20°C to 50°C
Storage Temp.	-20°C to 70°C
Humidity	5%RH to 95%RH(non-condensing)
Drop	Specifications 5ft./1.5 m drop to concrete across the operating temperature range
Sealing	IP65, IEC compliance
ESD	±15kv air discharge, ±8kv direct discharge

DEVELOPMENT ENVIRONMENT

SDK	Software Development Kit
Language	Java
Environment	Android Studio or Eclipse

DATA COMMUNICATION

WWAN	TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4,5, 7,8,12, 17, 20 WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz)
WLAN	2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN	Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
GPS	GPS(embedded A-GPS), accuracy of 5 m

DATA CAPTUER
BARCODE READER(OPTIONAL)

2D barcode

2D CMOS Imager:

Honeywell N5703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1

Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

COLOR CAMERA
