Wireless Barcode Scanner

  • Bluetooth Barcode Scanner
  • Bluetooth Barcode Scanner
  • Bluetooth Barcode Scanner
Bluetooth Barcode ScannerBluetooth Barcode ScannerBluetooth Barcode Scanner

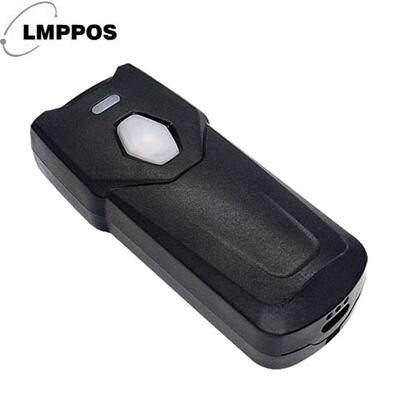

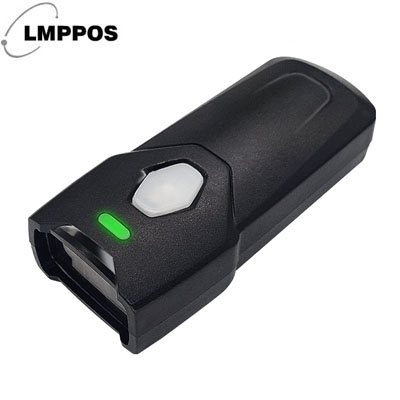

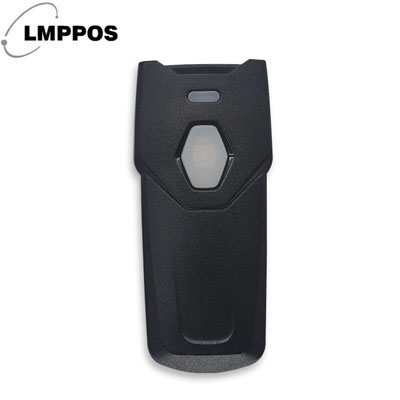

Bluetooth Barcode Scanner

  • Model:WBS-37
  • Bluetooth&2.4G
  • Support Bluetooth HID, SPP, BLE protocol
  • Built-in 16MB memory provides storage mode, which can store more than 200,000 barcode data
  • Product description: barcode scanner,handheld scanner,barcode reader,wireless barcode scanner,bluetooth barcode scanner
  • INQUIRY

There are the following significant advantages:
1. Through wireless Bluetooth communication, it supports the mainstream Andriod operating system on the market, all kinds of smartphones with the iOS Apple operating system, and applications running on tablet computers to scan and read barcodes!
2. Support the reading of barcodes by applications running on PCs, smartphones, and tablet computers with the original Microsoft mainstream windows XP, 7.0, 8.0, wince, and mobile operating systems!
3. Wired and wireless dual-mode, in the case of power failure, the charging cable can not only be used for charging but also supports HID transmission while charging. It also supports charging treasure power supply.
4. Support HID virtual keyboard scanning mode! The customer's original ERP system does not need to be modified, as long as the cursor is captured, barcode entry can be realized! It can also support SPP and BLE methods for customer development calls.
5. After the Bluetooth reception exceeds the connection range, it will automatically connect automatically after disconnection, without manual settings

Technical performance:
★ Supports all common 1D and 2D codes
★ Wired and wireless Bluetooth, wireless 2.4G three-mode free switching
★ Support Bluetooth HID, SPP, and BLE protocol
★ Safe and reliable Offline scanning can store more than 50,000 barcodes
★ Unique power management system, long standby time.
★ Rich decoding types Adopt imported keys
★ Built-in 16MB memory provides storage mode, which can store more than 200,000 barcode data
★ Using imported keys, long life, and a good feel
★ Automatic reconnection after Bluetooth disconnection

Power

1100mAh rechargeable lithium battery

Wireless communication range

Bluetooth 15m visual range, automatic reconnection after Bluetooth disconnection; 100m (2.4G)

Barcode

1D:Code 128,EAN-13,EAN-8,UPC-E,UPC-A,ISBN,ISSN,Code11, ITF-25(Interleaved 2 0f 5),Code39,Code93,Code32,Codabar,Matrix 2 of 5,Industrial 25,IATA 25,MSI Plesseyetc.

2D: QR Code, Data Matrix, PDF417

Transmission mode

Bluetooth & 2.4GHZ

Depth of Field

6-65cm

Scan Method

Manual, automatic, continuous

Interface

USB

Compatible System

Android/ IOS/ Windows system

Product Dimensions

88mm*40mm*25mm

Temperature

-20°C  to 55°C(operation)

-40°C to 65°C(storage)

Humidity

5% to 90%

Product Weight

58g

Drop

Resistant to the impact of multiple drops to the concrete floor from a height of 1.5 meters

Scan Rate

60 scan/s
